Band Brake System
These Band Brakes are simple, effective, and economical for a variety of light duty small vehicles.  They were designed to work with our 4" and 4.5" Drums, but will work well with any drum ranging in size from 3-7/8" through 4-5/8" O.D.  Brake pin included.

Description Part #  Price Buy Now
4-1/2" Brake, bulk 2255 $13.95
Brake Pin (Replacement) 2254 $1.10


go kart and minibike brake platform

Brake Platform
For 3.75 " bolt pattern on 5" & 6" Aluminum Tri-Star and Azusalite wheels. Allows mounting of brake drums and sprockets for band and drum brakes.

Platform w/Mounting Hardware 2259A $7.00



go kart and minibike brake drum and sprocket assembly

Brake Drum & Sprocket Assembly  for Drum Brakes Sold Above
This machined drum has a #35 sprocket factory riveted in position ready to accept our 4-1/2" internal expanding brake assemblies. Has 6 holes on a 5.25 bolt circle. 3 and 4 hole on a 3.75 bolt circle and a 4 hole pattern to match our mini-hub. Fits our 5" and 6" Azusalite nylon wheels and our aluminum Tri-Star rims (not required for Tri-Stars) with our  2259 Brake Mounting platform sold above . Machined I.D. for drum brakes.

Description Part #  Price Buy Now
Drum & 60 Tooth Sprocket 2217-OD $23.95
Drum & 72 Tooth Sprocket 2218-OD $25.95


go kart and minibike brake drums

4-1/2" Brake Drums-Machined I.D.
These brake drums have 6 holes on a 5-1/4" bolt circle for drum brakes. Three sets of mounting holes. 3 and 4 hole on a 3.75" dia. bolt circle and a 4 hole to match the mini-hub pattern. Machined I.D. for drum brakes. These drums fit 5" and 6" Tri-Star Aluminum and Azusalite nylon wheels with our # 2259 Brake Mounting platform sold above.

Description Part # Price Buy Now
Drum, no Flange 2211-OD $12.95
Drum w/Flange 2213-OD $13.95



go kart and minibike brake drums with riveted hubs

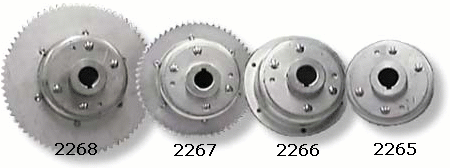

4 1/2" Drums With Riveted Hubs
These machined drums feature the Azusa Mini-Hub, factory riveted to any of our 4.5" drum variations for use on a 1" Live Axle.  Ideal for small, low horsepower vehicles.  Set screws and key included, machined I.D. for drum brakes.

Description Part # Price Buy Now
72 Tooth Sprocket, Drum & Hub Kit, for #35 Chain 2268-OD $39.75
60 Tooth Sprocket, Drum & Hub Kit, for #35 Chain 2267-OD $34.50
Flanged Drum & Hub Kit 2266-OD $23.00
Standard Drum & Hub Kit 2265-OD $23.95

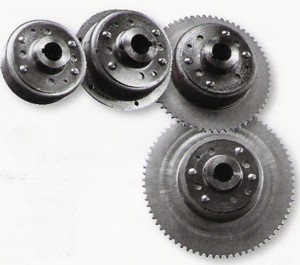

4 1/2" Brake Drums with 1 1/4" Bore Mini Hub
Users of 1 1/4" axles can now order 1 1/4" bore Mini-Hub with all combinations of 4 1/2" Brake Drums and with the 4 1/2" Brake Drums with Integral Sprockets.

go kart and minibike drums with riveted hubs

Description Part Number Price Add To Cart
4.5" Brake Drum, No Flange, with Riveted Mini-Hub, 1 1/4" Bore 2245-OD $24.95

4.5" Brake Drum, Flanged, with Riveted Mini-Hub, 1 1/4" Bore 2246-OD $24.95

4.5" Sprocket Drum, 60 Tooth, #35 Chain w/Riveted Mini-Hub, 1 1/4" Bore 2247-OD $34.50

4.5" Sprocket Drum, 72 Tooth, #35 Chain w/Riveted Mini-Hub, 1 1/4" Bore 2248-OD $35.95
